SHEET METAL AND TUBE MACHINING

[More info]

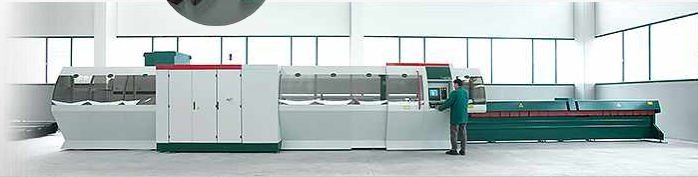

LASER CUTTING FOR TUBES
LASER TUBE UP TO 8,5 m

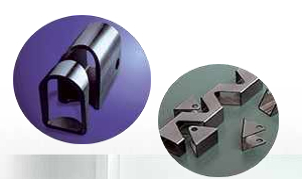

Using 2 different plants for laser cutting of tubes, we are able to perform straight and tilted cutting, holes, even in 3D on round and rectangular tubes and on open profiles (C U L Flat).
The process is fully automatic, including loading and unloading. This assures dimensional consistency and precision, an excellent finish, economical use of material, and reduces machining time and production costs.

Rectangular tube: 20x15 mm 200x150 mm

drop
drop
drop

Max weight of the bar: 32 Kg/lm

Round tube diameter: 12 - 220mm

Max load length: 8,5 lm

drop
drop

Max download length: 6,0 lm

drop

Square tube: 12x12 mm 200x200 mm

Workable dimensions are as follows:
